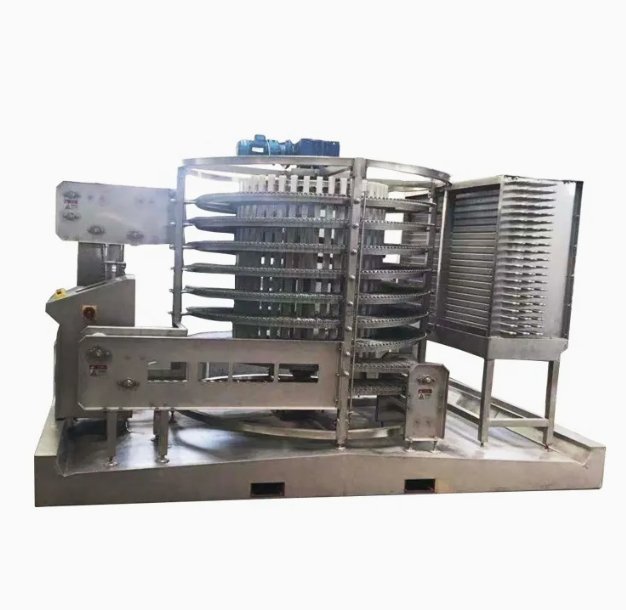

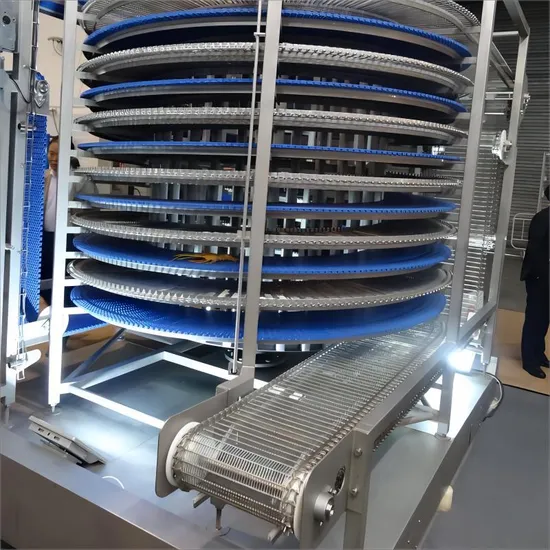

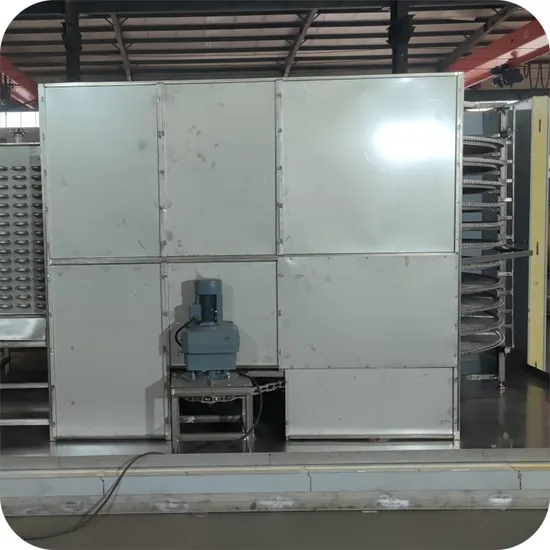

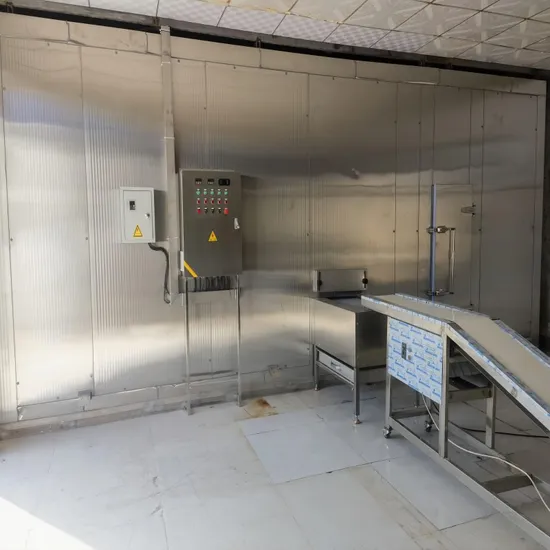

High-efficiency, energy-saving spiral freezer for rapid IQF freezing of flour-based foods, meats, seafood, and prepared meals.
Constructed entirely from food-grade SUS304 stainless steel for maximum durability and hygiene compliance.

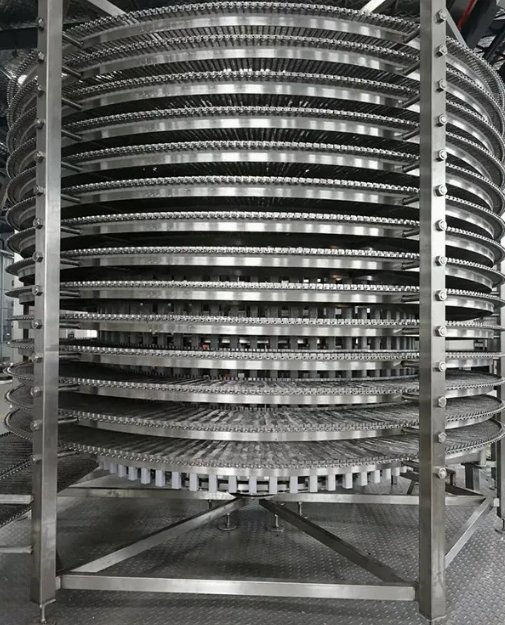

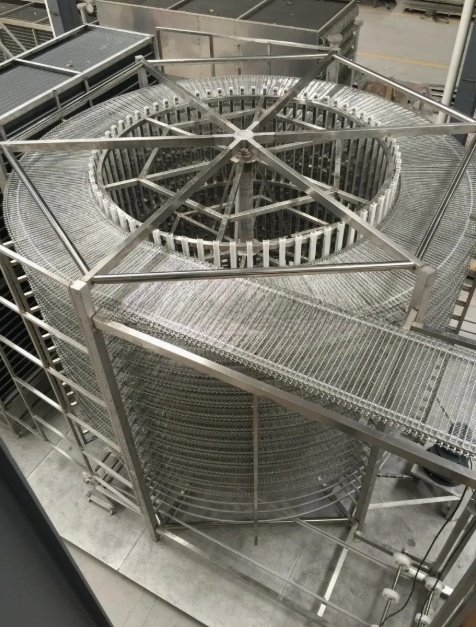

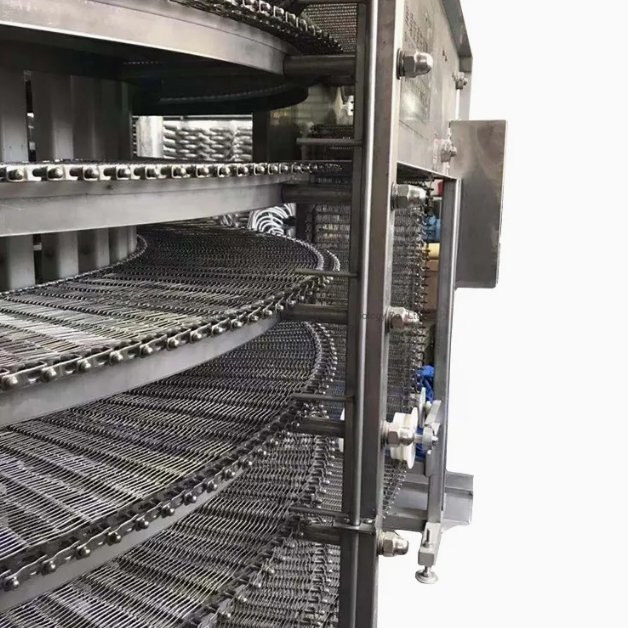

Features a robust stainless steel conveyor belt with secure side guards for safe and continuous operation.
Utilizes high-efficiency aluminum evaporators with variable fin pitches for optimized thermal exchange.
Incorporates axial fans with a stainless steel air box and aluminum blades for reliable, high-volume air circulation.

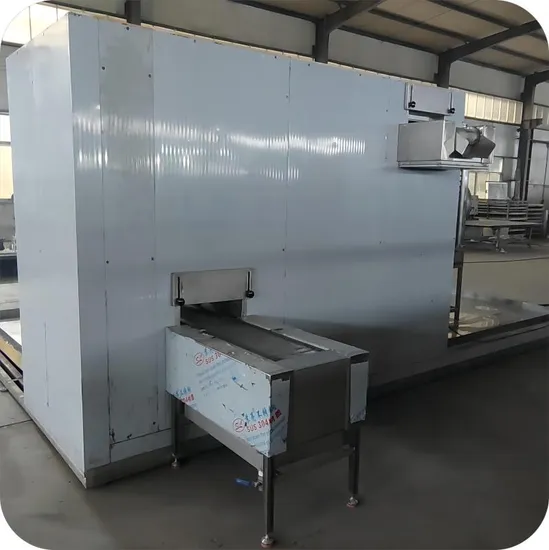

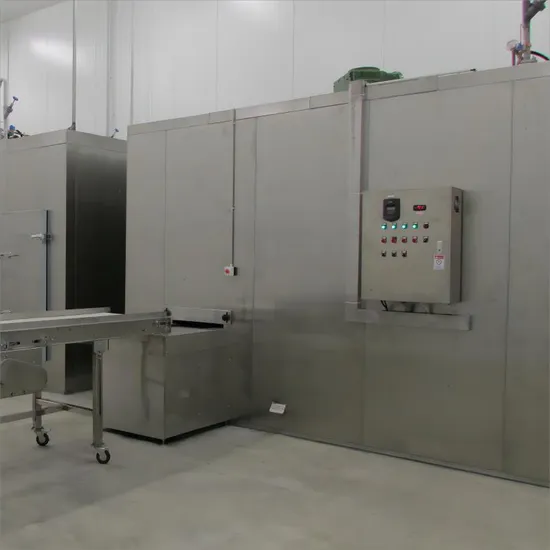

The compact structure design ensures a small footprint while delivering a large freezing capacity.
Advanced IQF technology ensures each product piece is frozen individually, preserving texture, taste, and quality.
Capacity: 240-300 kg/h
Inlet/Outlet Temperature: +15°C to -18°C
Cooling Temperature: -35°C
Refrigeration Capacity: 40kw (Refrigerant R507A)
Overall Dimensions (L*W*H): 6000 x 4000 x 3000 mm
Conveyor Belt Width: 400 mm (Effective 320 mm)
